Phoenix Contact| Part Number | 1838242 | Manufacturer | Phoenix Contact |
|---|---|---|---|

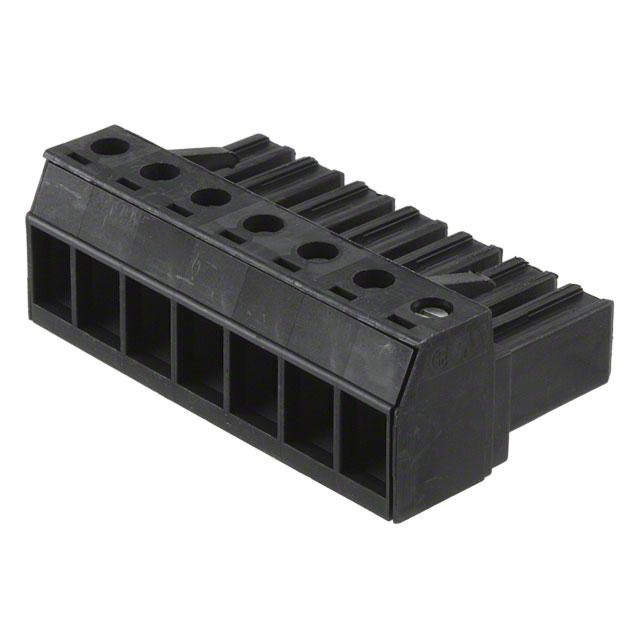

| Description | TERM BLOCK PLUG 7POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7046 pcs stock | Data sheet | |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-4mm² |
| Wire Gauge or Range - AWG | 10-30 AWG | Voltage - IEC | 1kV |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON PC |
| Screw Size | M3 | Positions Per Level | 7 |
| Plug Wire Entry | 180° | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 1838242-ND 277-8867 PC 4/ 7-ST-7,62 BK PC4/7-ST-7,62BK |
| Operating Temperature | - | Number of Positions | 7 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.713" (18.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 7 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) |
| Current - IEC | 20A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black | ||
